Here is my Zynthian ,

Hardware
1

Hello to all Zynthian users,

After a long time, I’ve decided to rescue my Zynthian V2 after all.

I had the problem that the Hiffy Berry wasn’t compatible with my 3.5-inch Waveshare.

Anyway, my current Zynthian consists entirely of components not from your shop,
except for the controller board for the rotary encoders.

I used the following parts:

1 x Raspberry Pi 3 Model B

1 x OSOYOO 3.5 Inch DSI Touchscreen

1 x HiFiBerry DAC2 Pro

1 x 40-pin GPIO extension cable (compatible with Raspberry Pi)

4 x CJMCU-111 rotary encoders with circuit boards

I’m using software debouncing, and there don’t seem to be any problems with it.

The Zynth isn’t quite finished yet; the MIDI part is still missing.

It’s already there, but I’ll connect it after some testing.

Now I want to spend some time working with the step sequencer.

I’m not an instrumentalist, but I’m good with grooveboxes.

Greetings from Peter in Hamburg

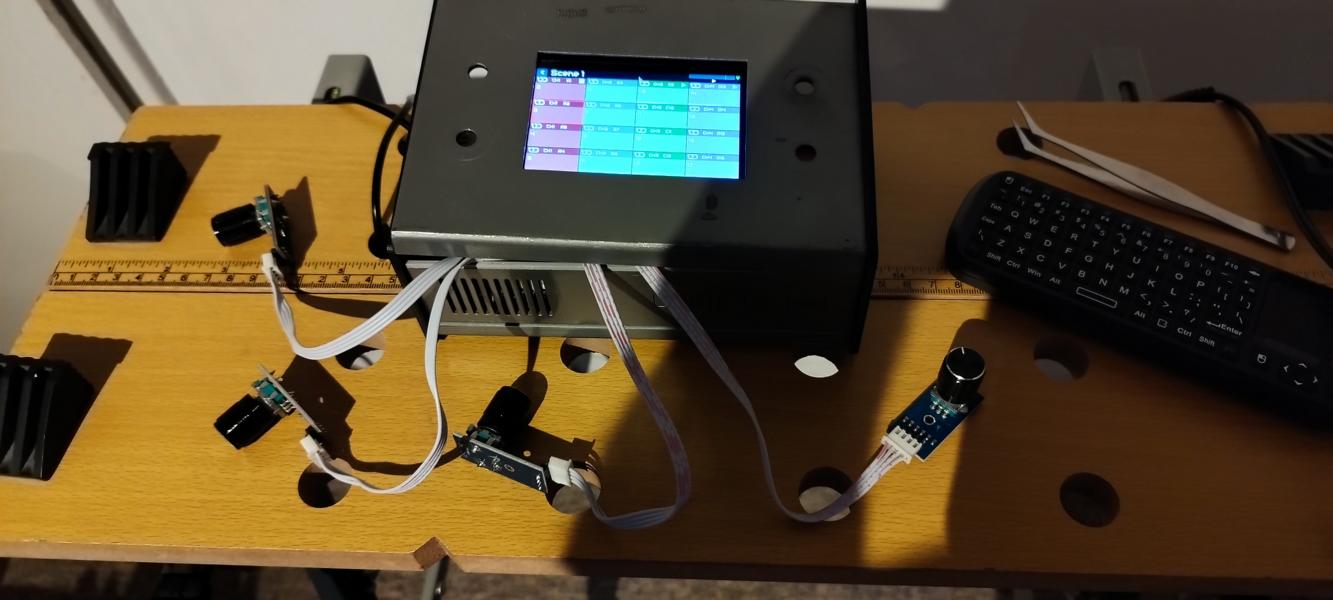

K800_MyNewZynth (1)
K800_MyNewZynth (1)1333×600 74.4 KB

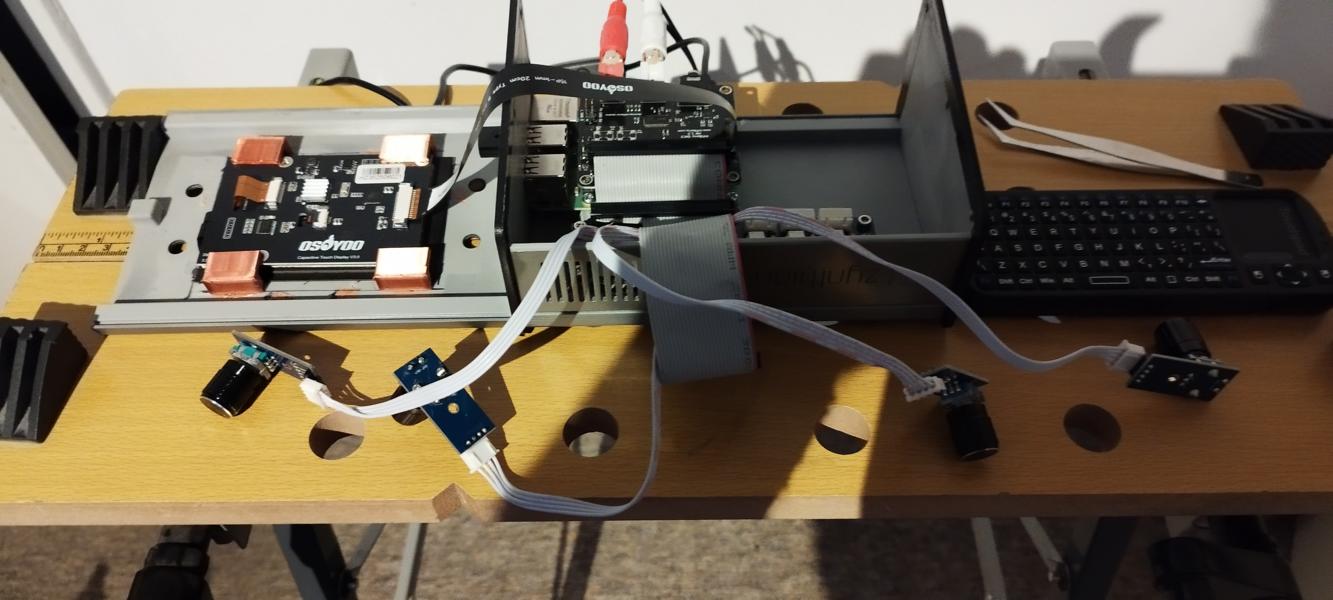

K800_MyNewZynth (2)
K800_MyNewZynth (2)1333×600 88.3 KB
