Hello.

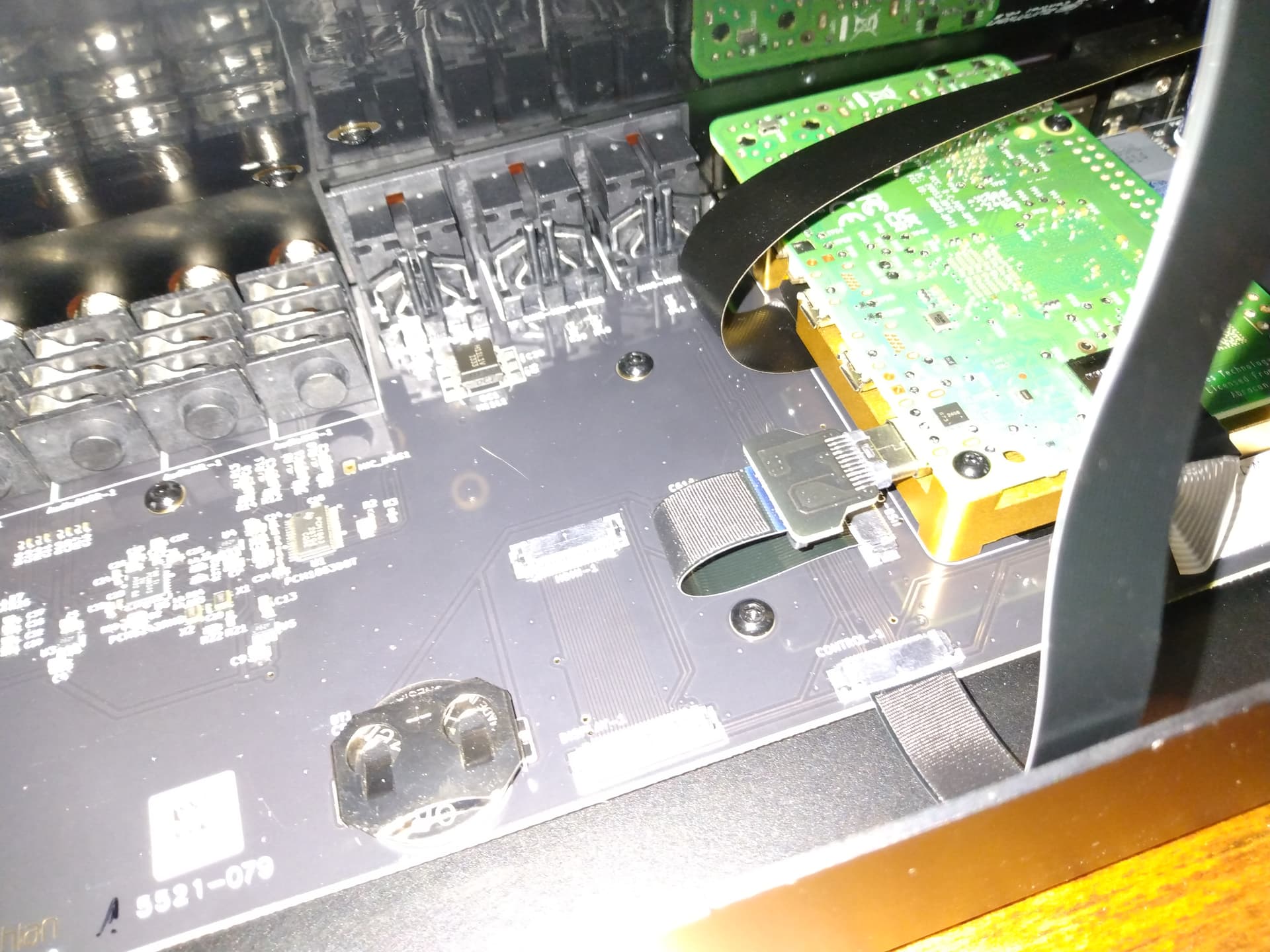

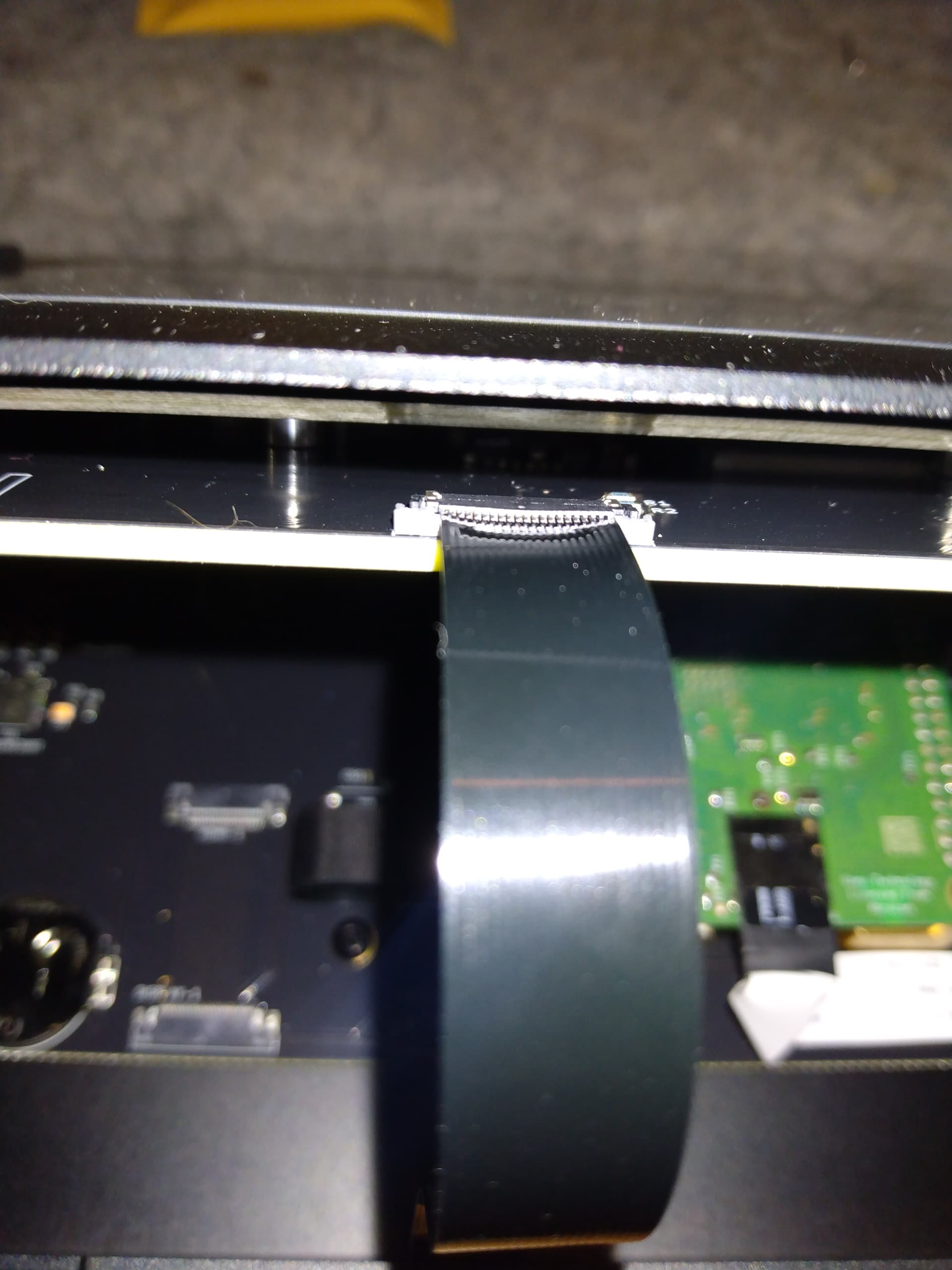

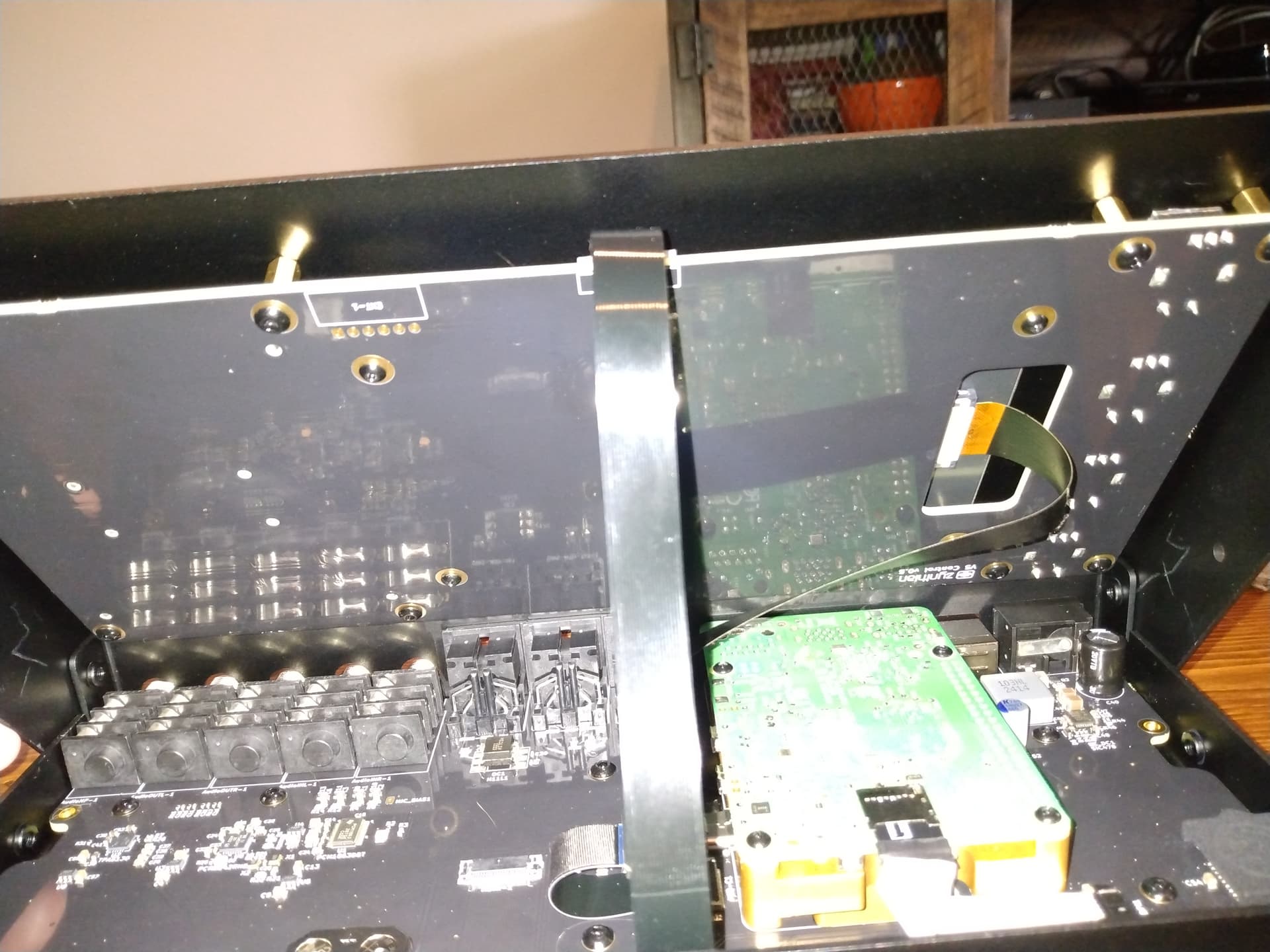

Just got my Zynthian v5.1 and have assembled it. It seems like everything is working except the buttons. They do not light up, nor does pressing them do anything. Providing videos and pictures.
Any suggestions to get this working?
Thank you!
Hi @wmnelis !!

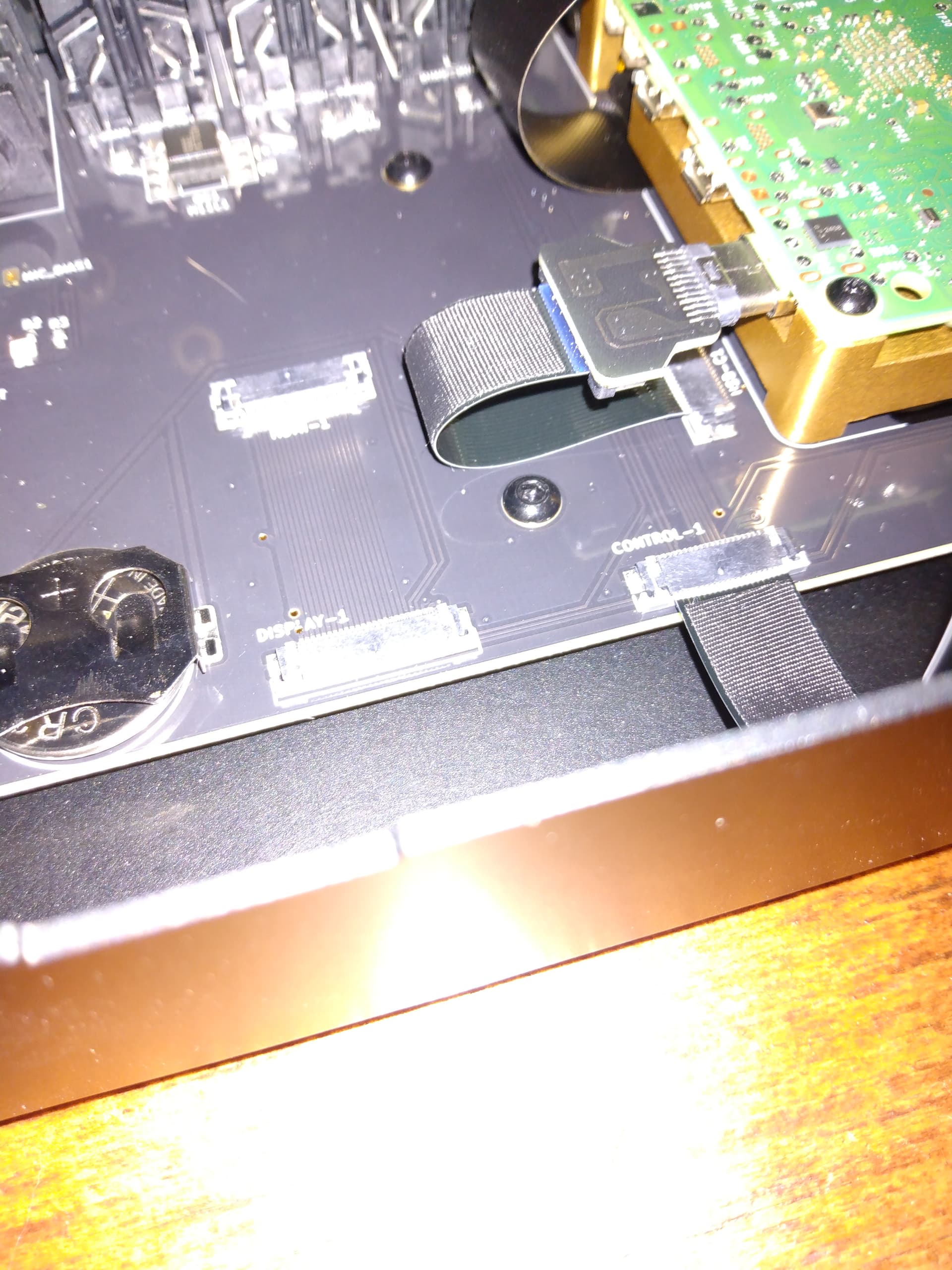

It looks (second picture) like you connected the control-1 flat cable upside-down. The contacts side should be facing up and you inserted the cable with the contacts side facing down. Please check all your wiring to be sure is OK. For all FPC connectors, cable contacts side should be facing-up when inserting.
The cable color has changed recently (from grey to black) ) and it doesn’t match the tutorial pictures. I’m adding some comments and notes to the tutorial to avoid further problems. I will try to update the pictures ASAP.
All the best!
Sadly this is not the solution. I took it apart again and reinserted the control cable. The contacts are facing up on both the main board and the control board. It may be hard to tell from the pictures, but this is how it was inserted initially. Same issue.
Thanks.
Have you tried with a fresh-burned SD?
Autodetection only runs on first boot.
You can reset the card by runner ng this command from terminal:
set_first_boot.sh
if this doesn’t work, please send the output from this command:
cat /root/first_boot.log
regards
