Zynthian V5 switches and keys

HansR · January 17, 2026, 6:49pm

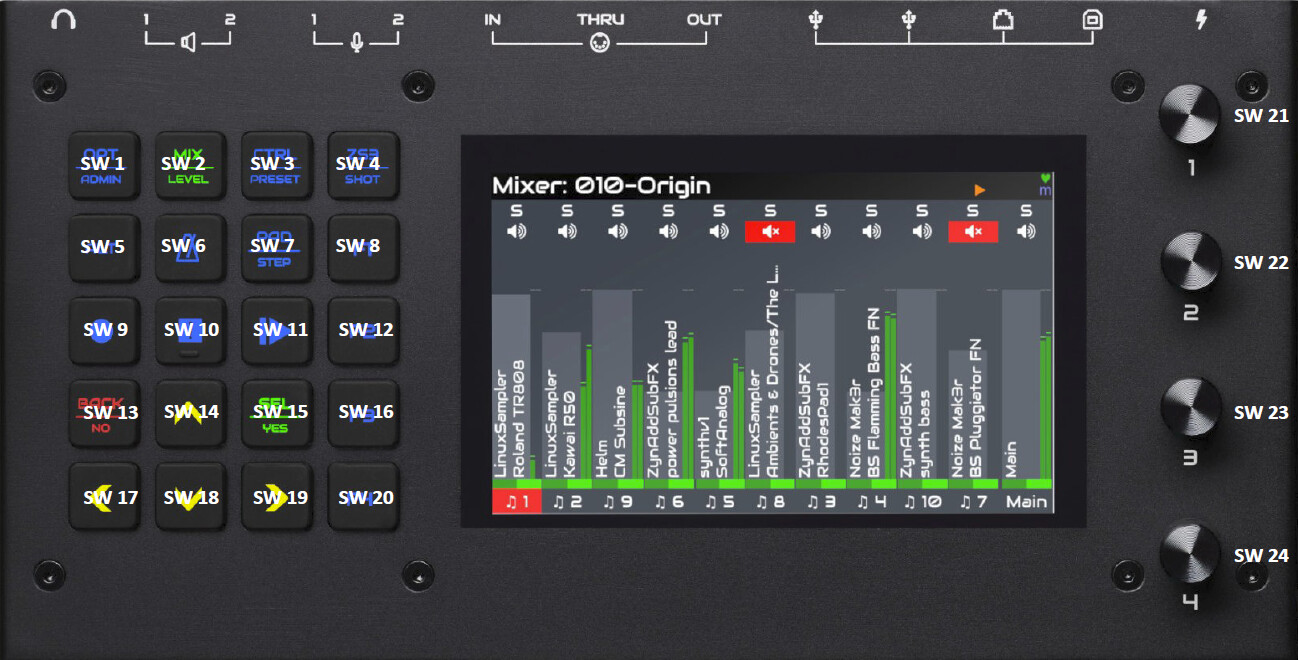

For those of you who (like me) always forget the wiring switch numbers.

wyleu · January 17, 2026, 6:53pm

Excellent Submission!

No soup for you tonight!

HansR · January 17, 2026, 7:19pm

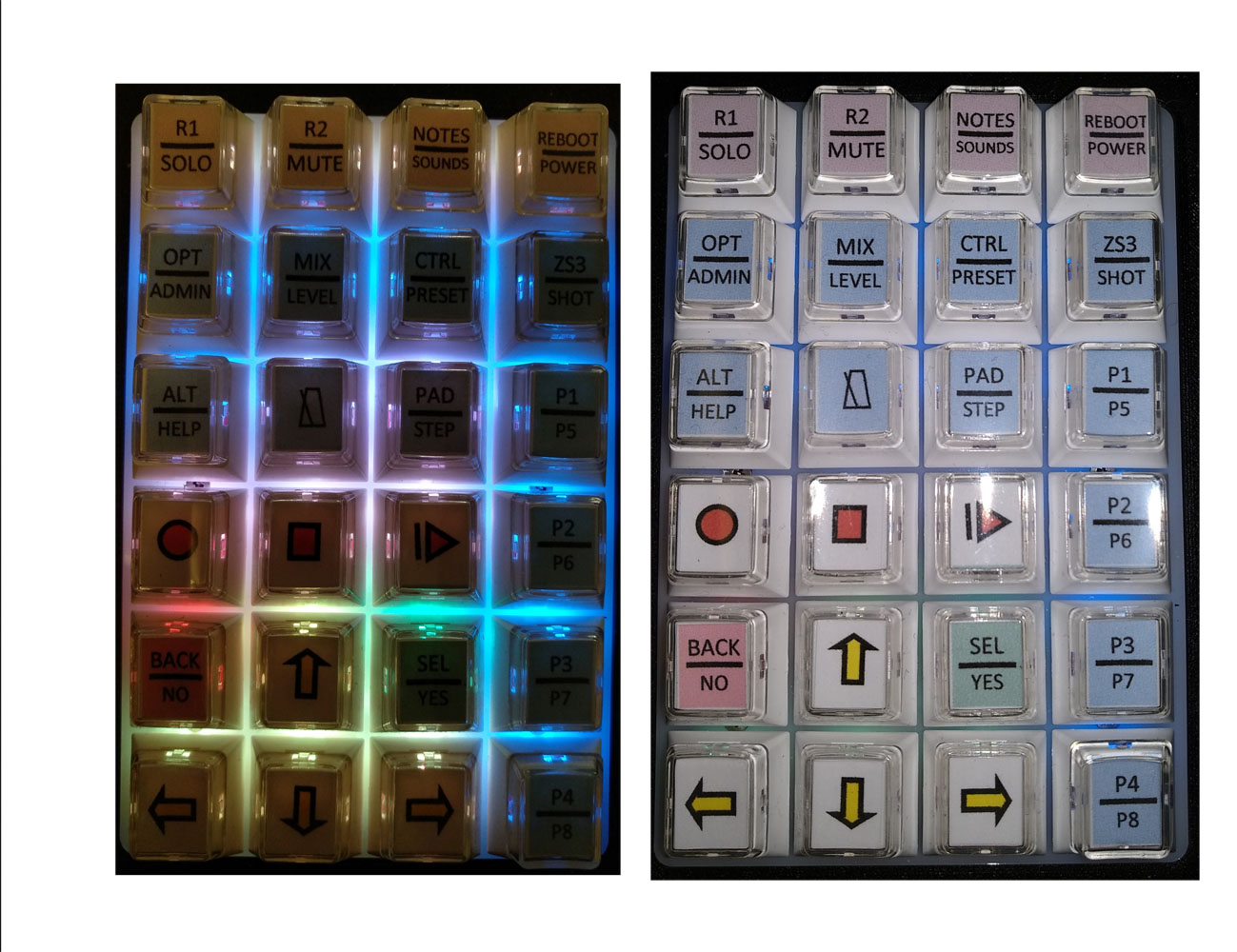

And for those of you who own one of these great Sayo-device keypads:

And also want these nice colourful keytops:

(it’s hard to get both the keytops and the backlight in one picture)

Aethermind · January 18, 2026, 8:28am

Thanks @HansR, that is über-useful!

core.east · January 18, 2026, 12:18pm

It is strange, but on my machine it is not like that,
i start with synswitch 4 and end with synswitch 27.

HansR · January 18, 2026, 12:37pm

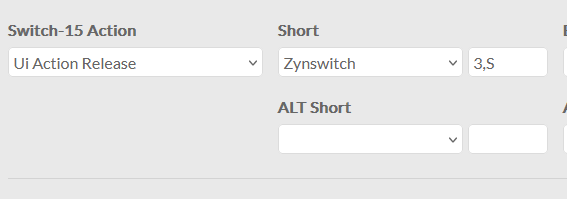

The zynswitch numbers are different, those are software numbers that can be assigned to hardware switchnumbers.

Like this:

Switch 15 is the SEL/YES button that is linked to Zynswitch 3

(when I remember where I saw it, I will make a list of zynswitches too )
