I want to know how zynface_v5 is connected. Does it need to be connected to Zynaptik-3? Can Zynaptik-3 be connected to zynthian v5? I noticed there is a v5_control_rack version. How are they connected?
2 Likes
Welcome back @798714773 , we’ve missed your digits.
There was a related question recently asked in another topic, and the answer was it’s a EuroRack version of V5. Here’s the topic, but it did not involve zynface_v5 or Zynaptik-3. I don’t know for certain the answer to your question on whether zynface_v5 needs to be connected to Zynaptik-3, but I think it does, or at least that’s the normal way it works.
Here’s a couple of more topics that might help:
Hi @798714773 !

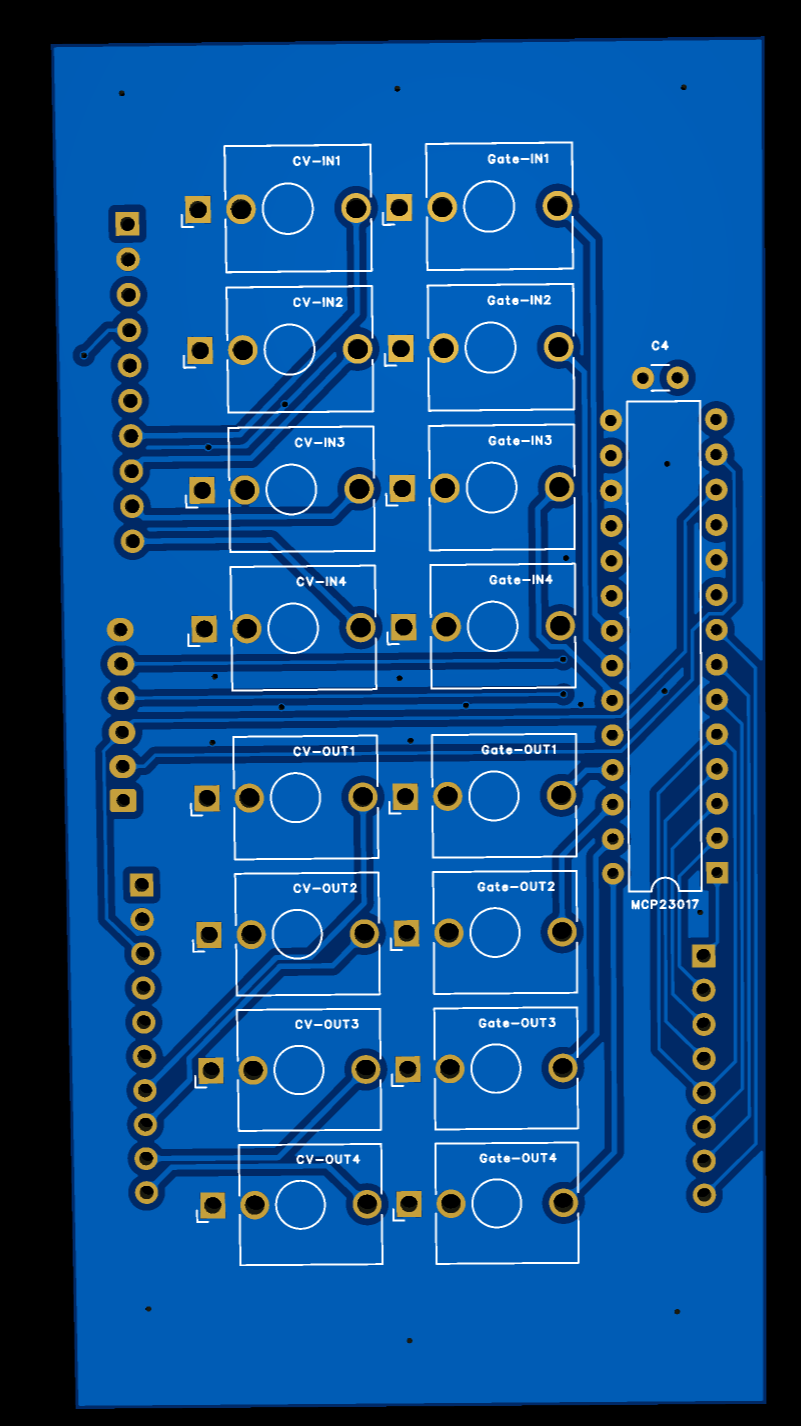

The “zynface V5” is an eurorack module prototype and it’s designed to be built at home without SMD soldering. For the DAC & ADC, you must buy separately the right modules from aliexpress or another place:
ADS1115 module:
MCP4728 module:
I just checked and these 2 module are pin-compatible. Please, verify pin-compatibility before buying any other module. There are some that has SCL/SDA reversed.

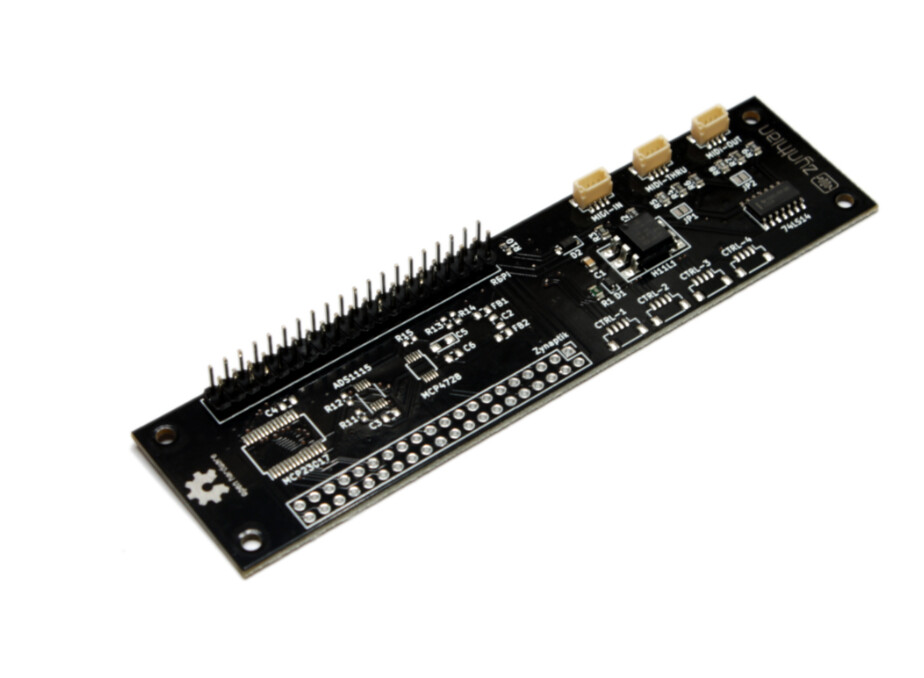

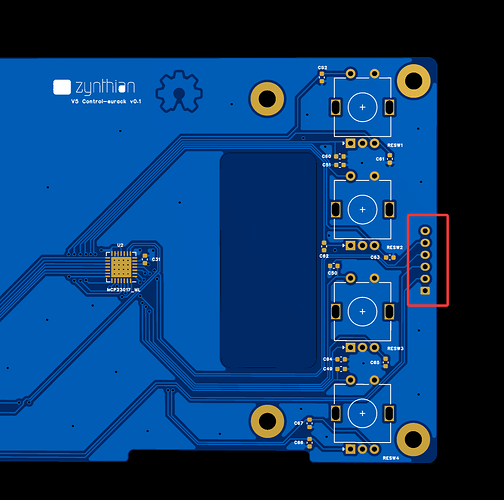

No need for the zynaptik module. Once built, the “zynface V5” module must be connected directly to the V5 control board. There is a specific 6-pin connector for this (EXT-1).
The result:
Check this out for more details:
and this:
Regards,
5 Likes

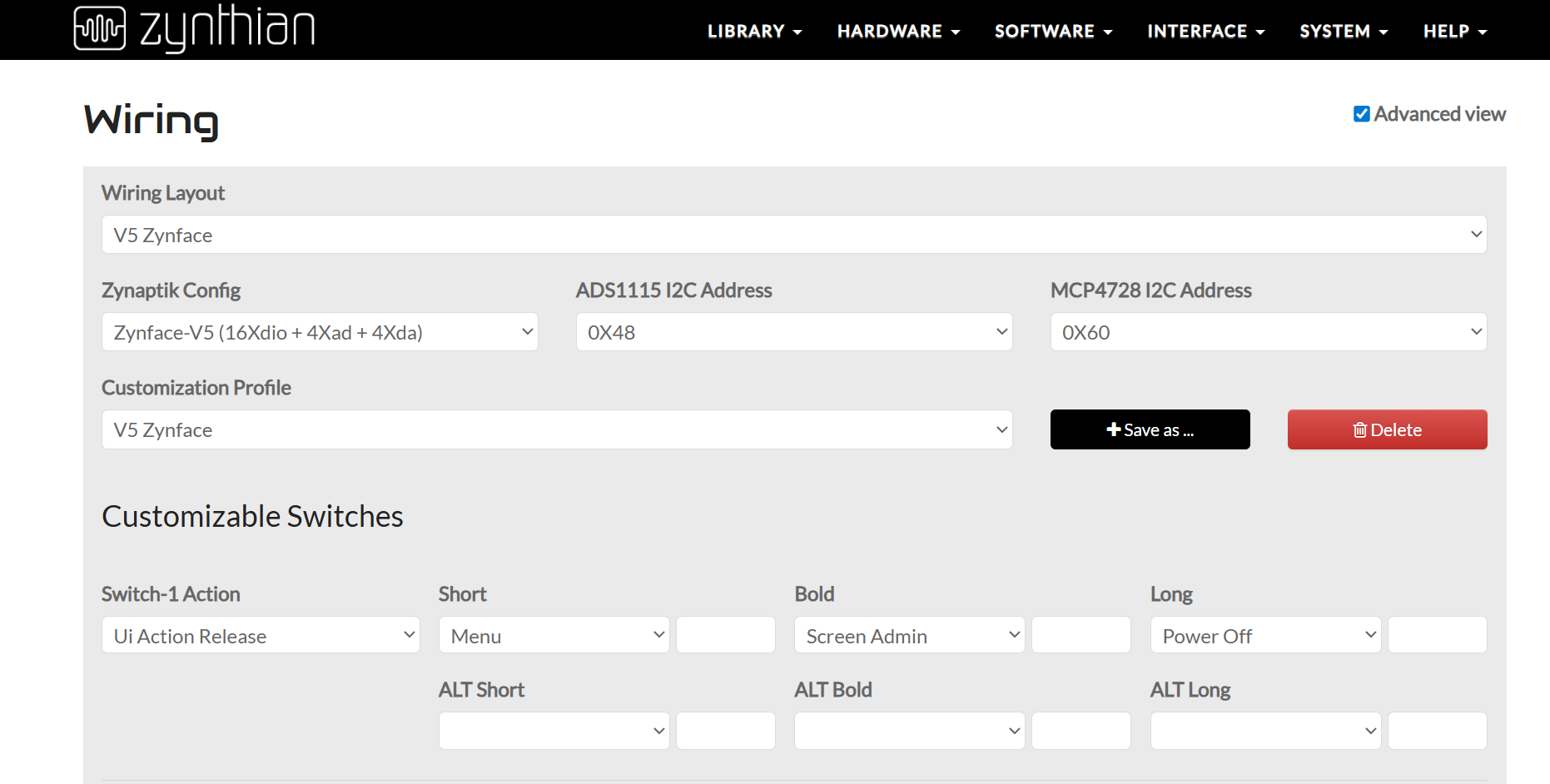

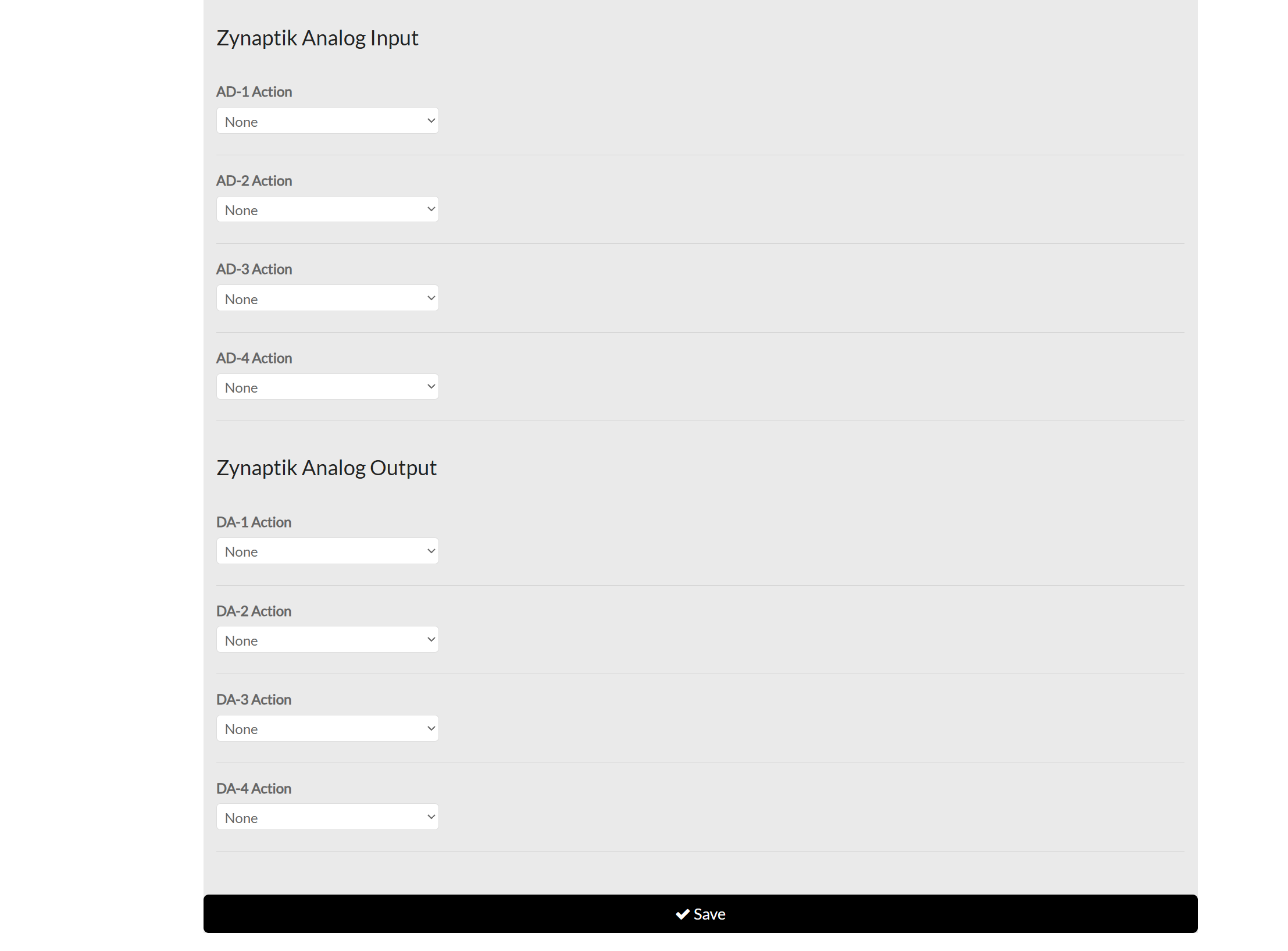

I should have correctly connected the v5 and zynface. How should I configure it on the webpage? What should I select for Wiring Layout and Customization Profile? I couldn’t find where to set the zynface in and out—I only see Zynaptik Analog Input and Zynaptik Analog Output. Please help me. Thank you.
I noticed this article. Is the current latest version having this issue? I’ve already read the voltage input from the ads1115 through the command line, but I feel that zynthian hasn’t converted it into MIDI notes. I’m not seeing any MIDI messages. Or do I need to configure some settings?
