Mounting my Zynthian Box Kit

Building Zynthian
1

First step: DAC arrived!

Happy 2017!

20170102_095624.jpg4128×2322 2.22 MB

1 Like
2

From Spain, hello everybody!

Second step is arrived: The display. Tiny but usefull.

20170104_100229.jpg4128×2322 2.39 MB
20170104_100325.jpg3301×1857 2.24 MB

1 Like
3

Hi @Mister_Carrington!
Saludos desde BCN! Good luck with your build!! :wink:
Un abrazo!

4

Hello again!

Slowly but step by step.
In this days the brain of the project is arrived. ‘The thirth element’.

20170109_101946.jpg4128×2322 2.57 MB

1 Like
5

Hello:

Some tricks to assemble the kit. First, the basic tools .

20170318_192445.jpg4128×2322 2.64 MB

20170319_131507.jpg2064×1161 1.12 MB

Extra tools:

Philps screwdriver (for screen).

Wrench for potentiometer nuts.

1 Like
6

After x4 cross check

20170319_142847.jpg4128×2322 1.79 MB
. I power on first time
.
The screen must be full white because the micro SD is not inserted yet.

1 Like
7

This is the first start up after insert the micro SD. First menu on screen.

Happy!

20170321_010227.jpg4128×2322 2.24 MB

1 Like
8

Hi @Mister_Carrington!

Congratulations, for the build! It seems OK!
I will be awiting your comments about sound, playability, etc. :wink:

Ahhh! Please, read this:

Super Regards!

9

Added to the wiki!! (remember that you can edit the wiki too :wink:

Regards!

10

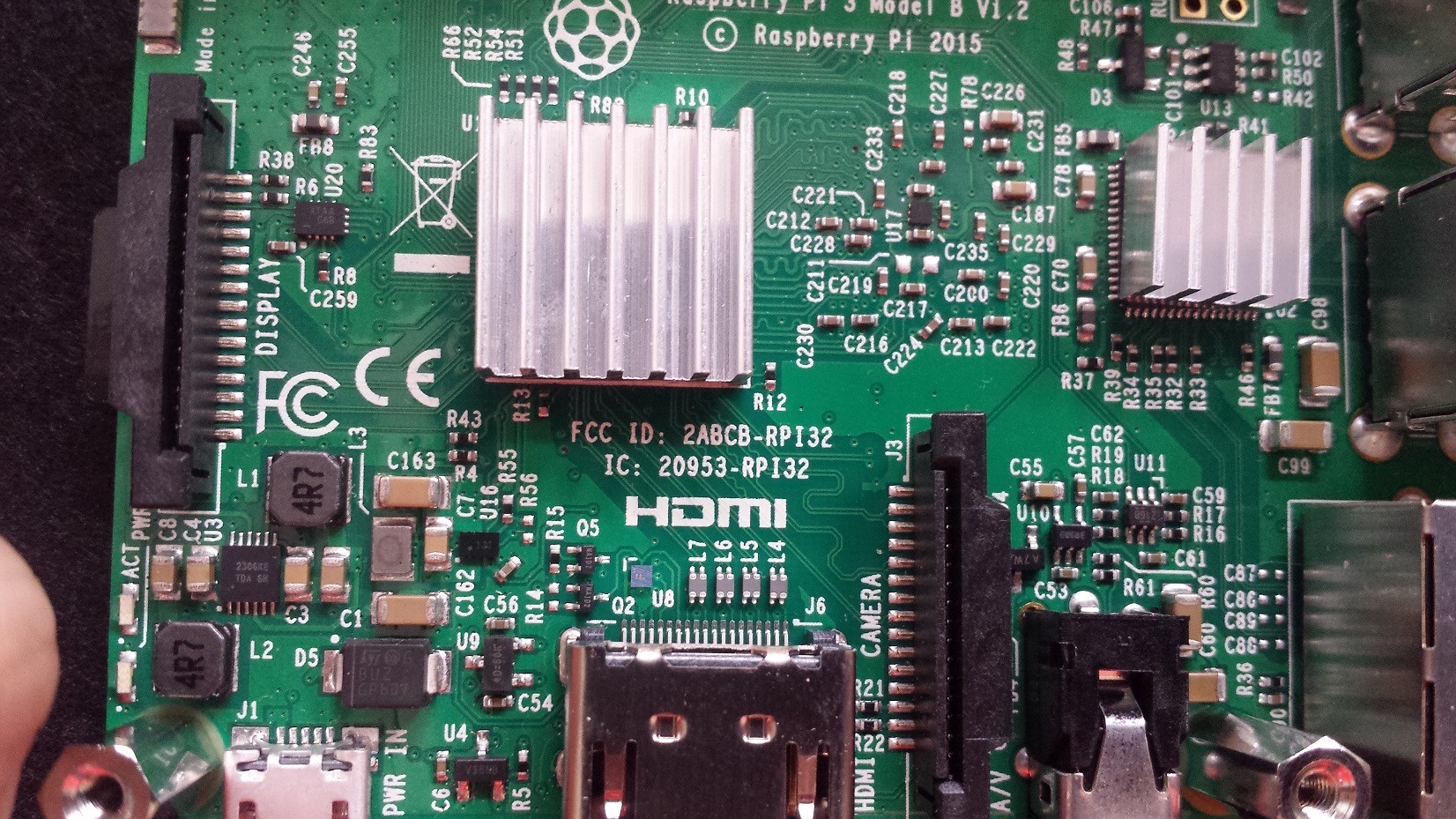

20170326_115346.jpg1652×929 559 KB

20170326_115333.jpg1652×929 625 KB

Aluminum and copper coolers aren’t ,mandatory!

1 Like
11

Pay attention with socket soldering. Mine is not the best example.

BACK FACE

20170326_115715.jpg1652×929 465 KB

FRONT FACE

20170326_115730.jpg1652×929 450 KB

1 Like
12

Check time and some new tools.

20170326_120100.jpg929×1652 460 KB

1 Like
13

First test using Synth machine in arpeggio program.

20170326_120437.jpg1652×929 361 KB

1 Like
14

Don’t forget to label your jack connector!

zzzzzzzzzzzzzzzzz.jpg1032×581 406 KB

1 Like
